Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

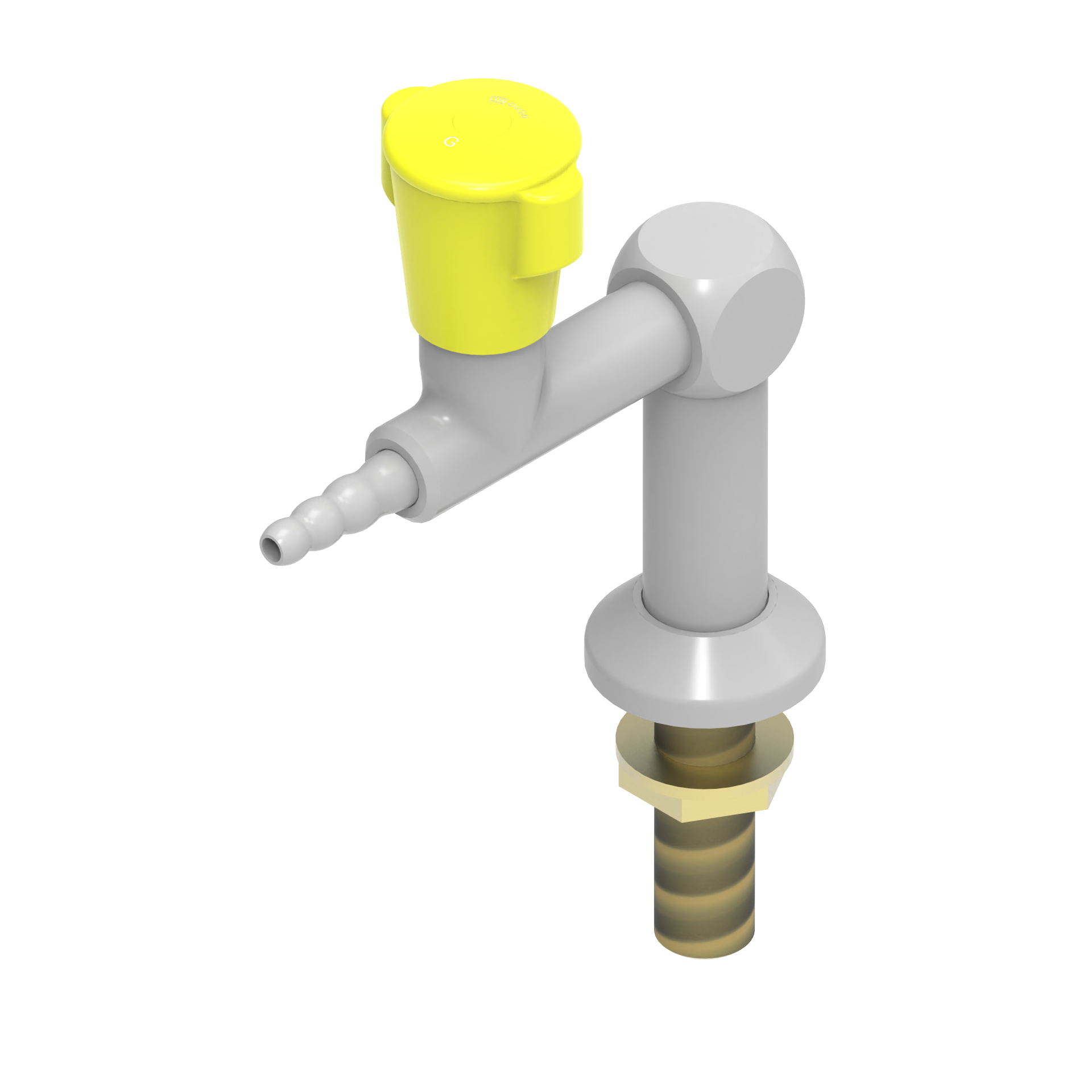

NOVALAB laboatory bench mounted ceramic disc valve for burning gasses with fixed nozzle, connection thread G1/2"
Art.-No.: 78 9811 25 35
+1
Variant
Attributes
- Headwork with ceramic discs 90°, maintenance free
- All-metal valve body, EPS-coated, grey RAL 7035
- Two-part ergonomic operating handle according to DIN 13792 with anti-twist protection and visually recognisable operating state
- Nominal pressure PN 0,2 bar
- Connection/fastening thread G1/2" - 70 mm long
- Hose nozzle diameter 10/13 mm
- With mounting set
Variants
for burning gas (G)
Art.-No.:
78 9811 25 35
Bookmark
for propane (C3H8)
Art.-No.:
78 9811 25 39
Bookmark
Dimensional Drawings
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
