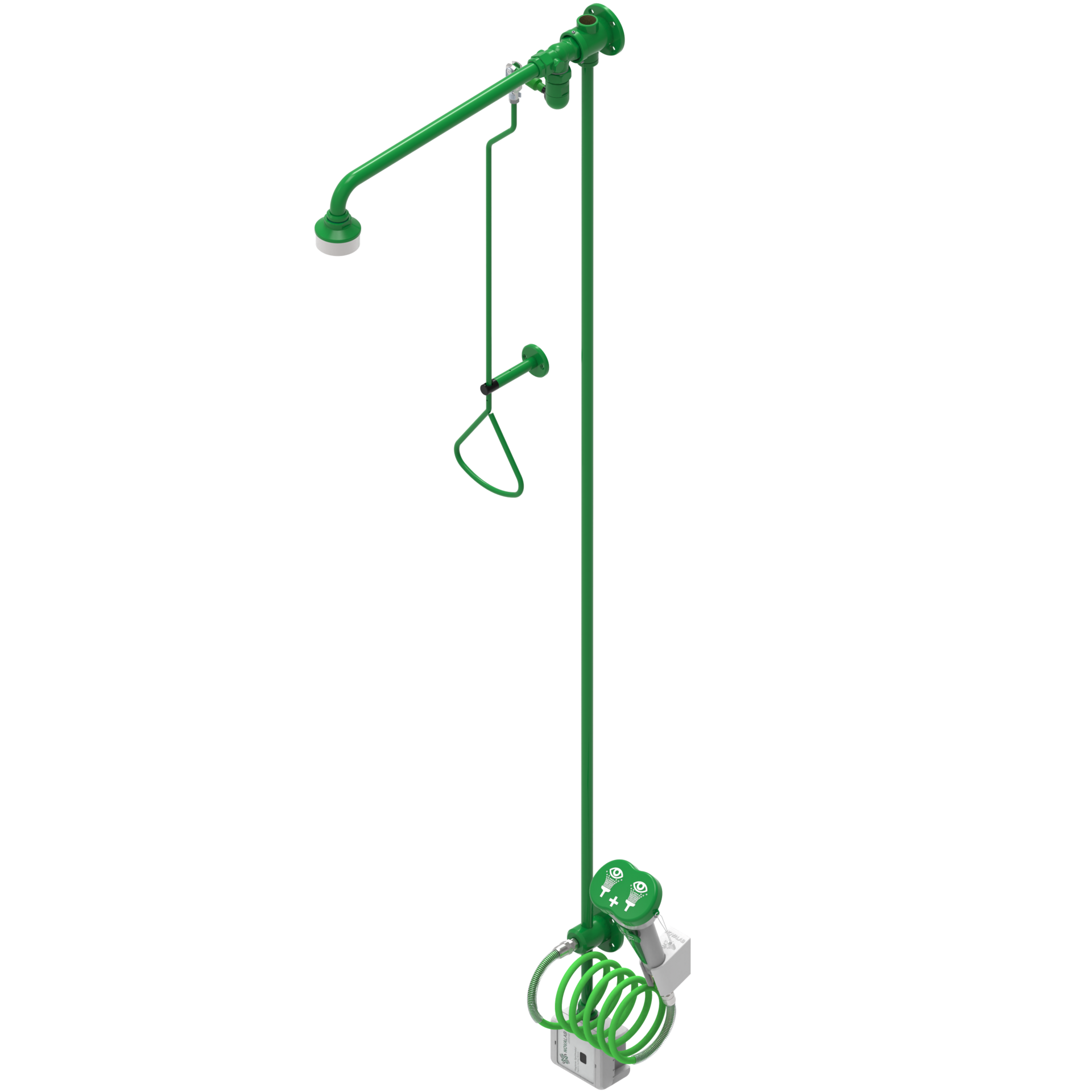

NOVALAB safety shower combination consisting of body shower with pull-rod actuation and eye/face shower for surface mounting, water connection on all sides

Attributes

• Pull rod guided, with triangle handle and sealing option
• Wall flange with toggle valve, wall bracket, safety shower head, eye and face shower with wall bracket
• Emergency shower head with nozzle holes and swirl discs for optimum spray jet
• Replaceable nozzle base, nickel-plated
• Self-draining shower head and wall bracket by gradient
• Fitting does not close automatically
• Emergency shower head 7 nozzle bores (approx. 60 l/min at 1.5 bar flow pressure)
• Vertical connecting pipe with wall flange for connecting the eye and face wash unit
• Eye shower unit with Wall bracket for precise positioning for stationary or flexible use
• Spiral pressure hose 1500 mm long for flexible use
• Eye wash unit with Flow regulator for constant water volume and spray height
• Eye wash unit with Dust protection cap to protect the jet former
• strainer to protect the eye wash unit
• Housing eye wash unit made of robust plastic, water-bearing parts on pressure side and water connection made of metal, green RAL 6032/ grey RAL 7035
• with hygiene flush module for cyclical flushing of water pipes at risk of stagnation Integrated programmable control electronics (selectable flushing times and intervals)
• Fulfils the requirements of DIN EN 15154-1 and -2 and the German BGI/GUV-I 850-0 ‘Safe working in laboratories’
• With safety signs ‘safety shower’ and ‘eye wash unit’ as stickers in accordance with ISO 3864-1
• With mounting material and technical product information
