Developed and
Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

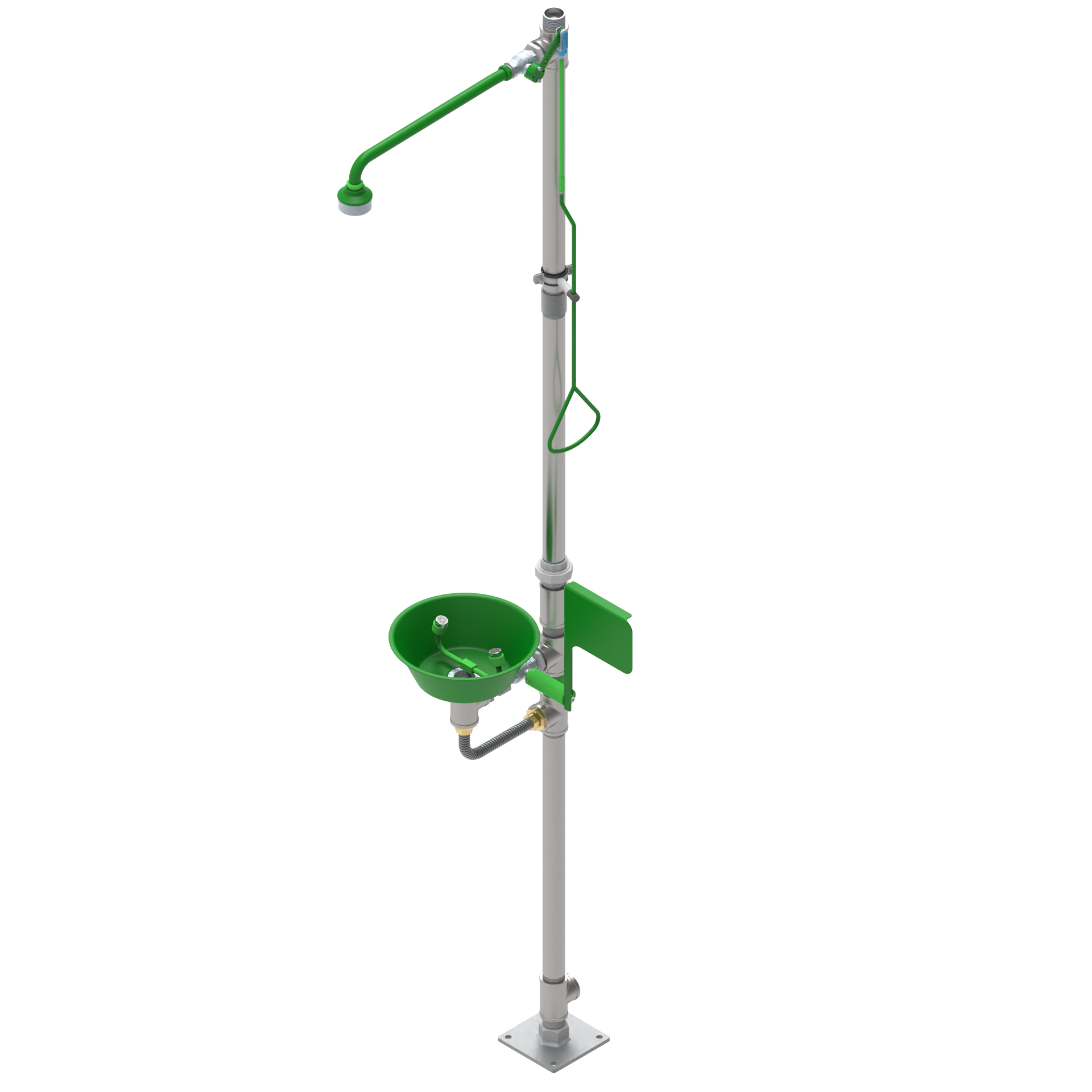

NOVALAB freestanding emergency shower combination
Art.-No.: 60 2001 10
Attributes
- With fixed eye shower and drip tray
- Eye shower flow rate 12 l/min, with two nozzle arms
- Emergency shower with Pull rod guided, with triangle handle and sealing option
- Emergency shower head with nozzle holes and swirl discs for optimum spray jet
- Emergency shower head 7 nozzle bores (approx. 60 l/min at 1.5 bar flow pressure)
- Volume flow approx. 60 l/min at 1 bar flow pressure
- Shower head and shower pipe drain automatically due to gradient
- Fitting does not close automatically
- Water connection: external thread 1 1/4"
- Water outlet: external thread 1 1/4’
- With technical product information
Variants
Bookmark
Dimensional Drawings
Customization
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
