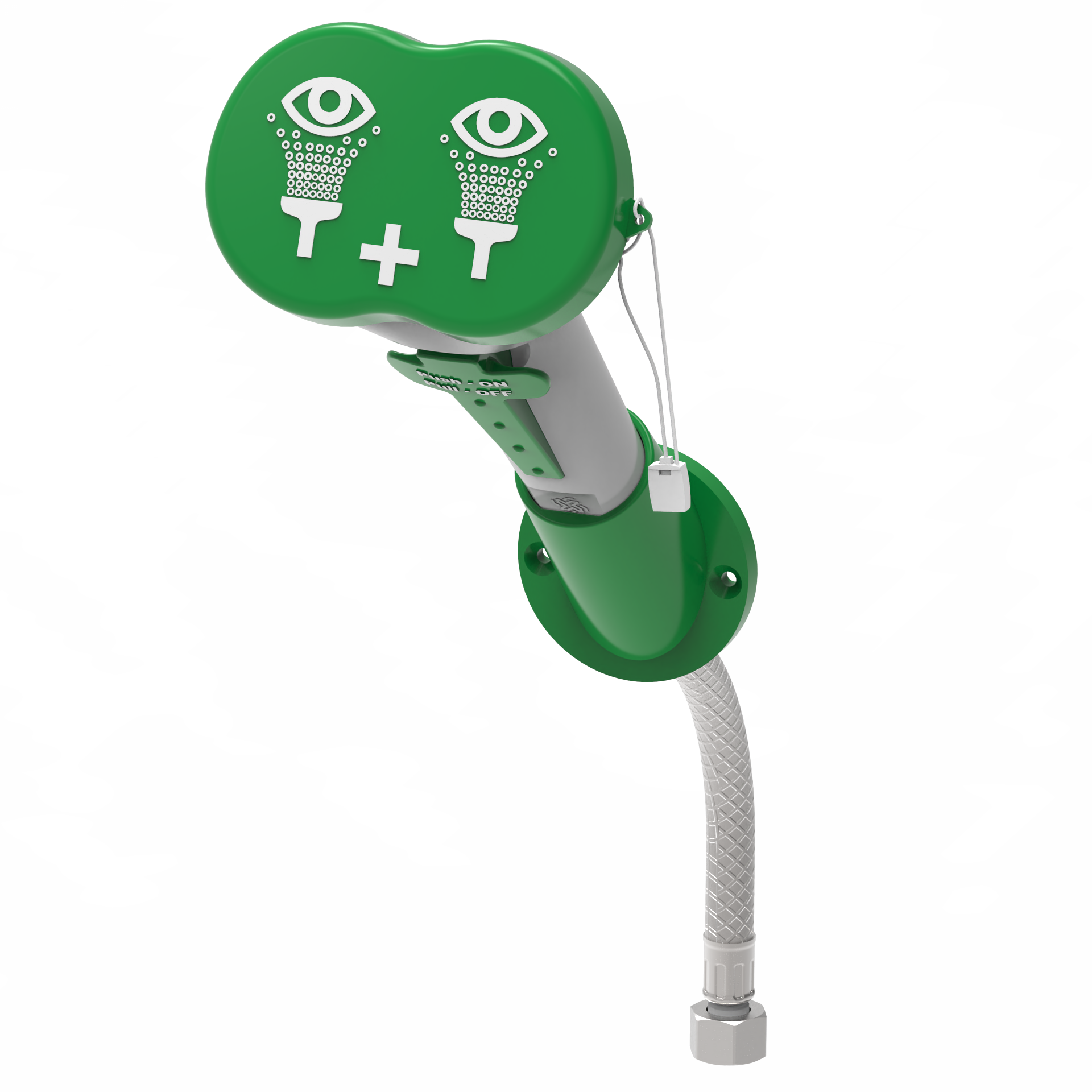

NOVALAB eye/face shower for for wall mounting in laboratory facilities, with stainless steel sheathed pressure hose

Art.-No.: 70 1342 15

Attributes

Wall feed-through for precise positioning for stationary or flexible use
Hose is fed through the furniture wall
Spiral pressure hose arrangement right/left possible
Flow regulator for constant water volume and spray height
Dust protection cap to protect the jet former
strainer to protect the eye wash unit
Robust plastic housing
Water-bearing parts on the pressure side and water connection made of metal
Colour green RAL 6032 and grey RAL 7035
With wall feed-through and fixing material
With ‘Eye wash unit’ safety sign as a sticker in accordance with ISO 3864-1
With technical product information
Fulfils the requirements of EN 15154-2 and the German BGI/GUV-I 850-0 ‘Safe working in laboratories’
DVGW certified
Volume flow 12 l/min constant from 1.8 bar flow pressure
Hose connection Union nut G 3⁄8

Art.-No.: 70 1342 15

Bookmark

We would be happy to advise you on further customisation options. Get in touch and we will find a solution.

Datasheet

273 KB

Dimensional Drawings

52 KB

Technical product information

1.5 MB

Product Images

216 KB
