Free from cadmium (Cd) and lead (Pb) for a healthy work environment
Proven safety through function- and leak testing

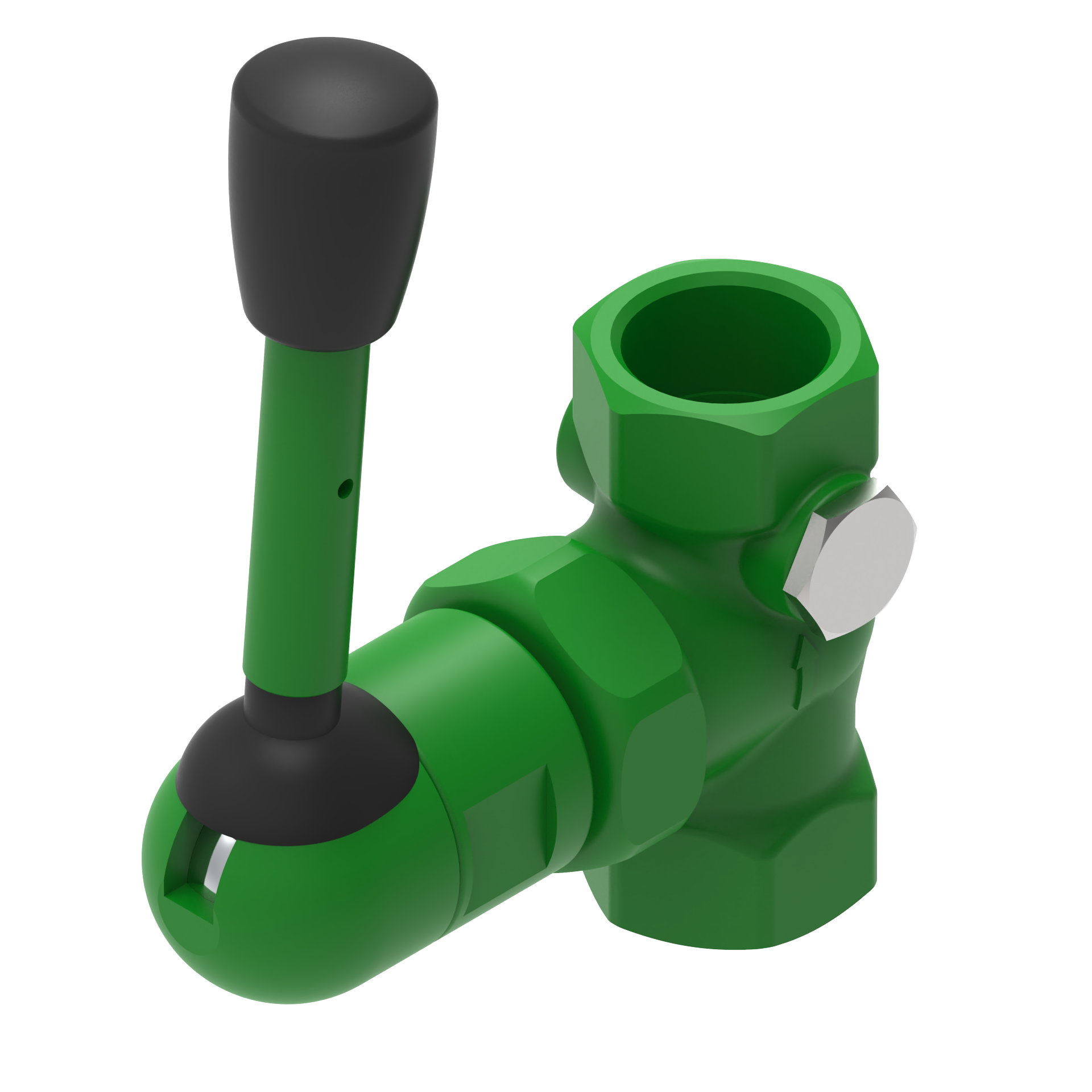

NOVALAB toggle safety-valve for surface mounting
Art.-No.: 70 1704 35
Attributes
- Operating lever with tapered handle and sealing option
- Axially sealing valve
- Headwork can be replaced without removing the valve body
- Connection of a G1/4 drain valve optionally possible
- Volume flow approx. 60 l/min at 1 bar flow pressure
- Wasseranschluss: Innengewinde G3/4
- Brass EPS-coated green RAL 6032
- Fulfils the requirements of DIN EN 15154-1 and the German BGI/GUV-I 850-0 ‘Safe working in laboratories’
Variants
Bookmark
Dimensional Drawings
Customization
- Closing cap for flushing the pipework Item no.: 87-20000006
- Drain valve part no.: 87-34000056
We would be happy to advise you on further customisation options. Get in touch and we will find a solution.
